        Planar Truss

 
        Summary of stability and determinacy of planar truss:

Planar Truss

Summary of stability and determinacy of planar truss:

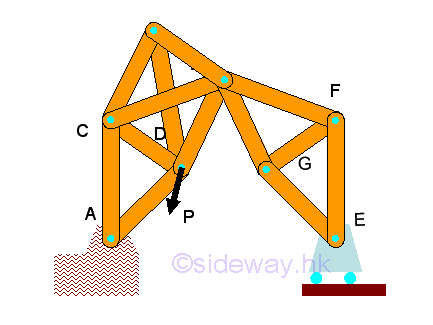

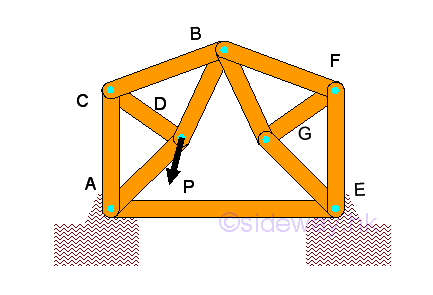

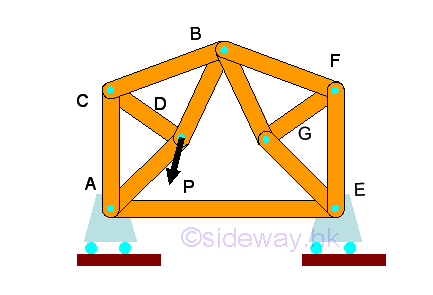

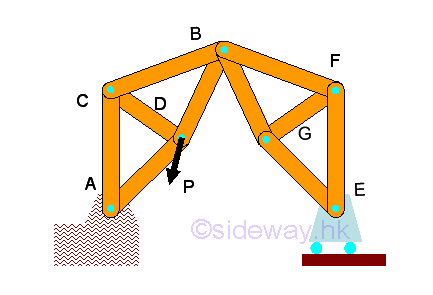

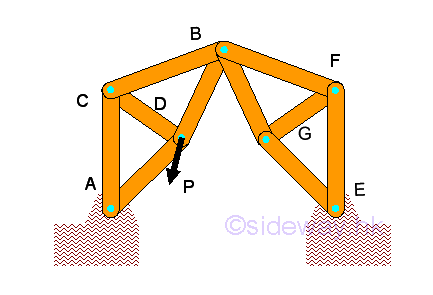

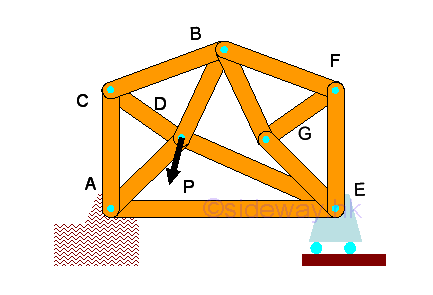

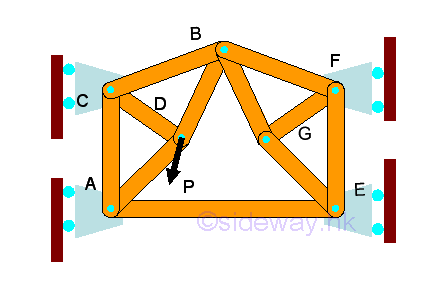

Truss	m, n, R	m>=2n-R	Remarks
	5,4,3	5=2(4)-3	stable determinate
	11,7,3	11=2(7)-3	stable determinate
	13,8,3	13=2(8)-3	improper truss member unstable - internal
	10,7,4	10=2(7)-4	improper truss member improper constraint unstable - internal
	4,4,3	4<2(4)-3	improper truss member unstable - internal
	11,7,2	11<2(7)-2	improper constraint unstable - external
	10,7,3	10<2(7)-3	improper truss member unstable - internal
	6,4,3	6>2(4)-3	improper truss member indeterminate - overrigid
	11,7,4	11>2(7)-4	improper constraint unstable - external
	11,7,4	11>2(7)-4	improper constraint stable indeterminate -overconstrain
	12,7,3	12>2(7)-3	improper truss member stable indeterminate - overrigid
