Indication

The defined indication Animation in indication.py

• indication.WiggleOutThenIn(Animation)
• indication.Flash(AnimationGroup)
• indication.AnimationOnSurroundingRectangle(AnimationGroup)
  • indication.ShowPassingFlashAround(AnimationOnSurroundingRectangle)
  • indication.ShowCreationThenDestructionAround(AnimationOnSurroundingRectangle)
  • indication.ShowCreationThenFadeAround(AnimationOnSurroundingRectangle)
• indication.FocusOn(Transform)
• indication.Indicate(Transform)
  • indication.CircleIndicate(Indicate)
• indication.TurnInsideOut(Transform)
• indication.ShowPassingFlash(ShowPartial)
  • indication.ShowCreationThenDestruction(ShowPassingFlash)
• indication.ShowCreationThenFadeOut(Succession)
• indication.ApplyWave(Homotopy)

Class WiggleOutThenIn(Animation)

WiggleOutThenIn is used to wiggle the specified VMobject out then in animatedly for given parameters.

Class Flash(AnimationGroup)

Flash is used to add a flash to the specified VMobject animatedly for given parameters.

Class AnimationOnSurroundingRectangle(AnimationGroup)

AnimationOnSurroundingRectangle is used to add a surrounding indication rectangle to the specified VMobject animatedly for given parameters.

Example

Code

# folder/file: tut/manim_animation_wiggleouttheninflashanimationonsurroundingrectangle_001a.py

from manimlib.scene.scene import Scene
from manimlib.mobject.geometry import Circle, Square
from manimlib.mobject.svg.tex_mobject import TextMobject
from manimlib.animation.composition import AnimationGroup
from manimlib.animation.indication import WiggleOutThenIn, Flash, AnimationOnSurroundingRectangle

class manim_animation_wiggleouttheninflashanimationonsurroundingrectangle_001a(Scene):
   def construct(self):
        a1=TextMobject("\\textbf{Test1 Text}",height=0.6).move_to([-4.5,2.5,0])
        a2=TextMobject("\\textbf{T2 Text}",height=0.28).move_to([1,2.5,0])
        a3=Circle(color="#FFFFFF").scale(0.8).move_to([4,2.5,0])
        a4=Square(fill_color="#00FF00",fill_opacity=1).scale(0.8).move_to([6,2.5,0])
        b1=TextMobject("\\textbf{Test1 Text}",height=0.6).move_to([-4.5,0,0])
        b2=TextMobject("\\textbf{T2 Text}",height=0.6).move_to([1,0,0])
        b3=Circle(color="#FFFFFF").scale(0.8).move_to([4,0,0])
        b4=Square(fill_color="#00FF00",fill_opacity=1).scale(0.8).move_to([6,0,0])
        c1=TextMobject("\\textbf{Test1 Text}",height=0.6).move_to([-4.5,-2.5,0])
        c2=TextMobject("\\textbf{T2 Text}",height=0.6).move_to([1,-2.5,0])
        c3=Circle(color="#FFFFFF").scale(0.8).move_to([4,-2.5,0])
        c4=Square(fill_color="#00FF00",fill_opacity=1).scale(0.8).move_to([6,-2.5,0])
        self.add(TextMobject("WiggleOutThenIn").move_to([0,3.5,0]),TextMobject("Flash").move_to([0,1,0]),TextMobject("AnimationOnSurroundingRectangle").move_to([0,-1.5,0]))
        self.add(a1,a2,a3,a4,b1,b2,b3,b4,c1,c2,c3,c4)
        self.wait(3)
        self.play(AnimationGroup(WiggleOutThenIn(a1),Flash(b1),AnimationOnSurroundingRectangle(c1)),run_time=5)
        self.wait(3)
        self.play(AnimationGroup(WiggleOutThenIn(a2),Flash(b2),AnimationOnSurroundingRectangle(c2)),run_time=5)
        self.wait(3)
        self.play(AnimationGroup(WiggleOutThenIn(a3),Flash(b3),AnimationOnSurroundingRectangle(c3)),run_time=5)
        self.wait(3)
        self.play(AnimationGroup(WiggleOutThenIn(a4),Flash(b4),AnimationOnSurroundingRectangle(c4)),run_time=5)
        self.wait(3)

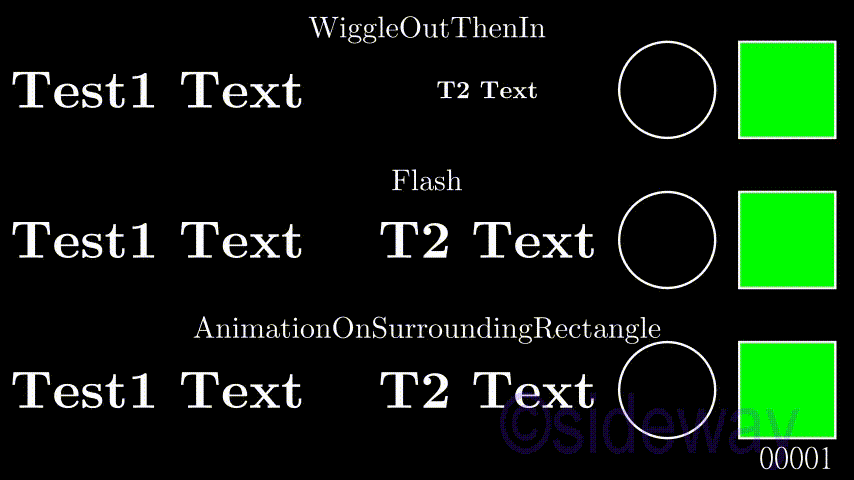

Output
