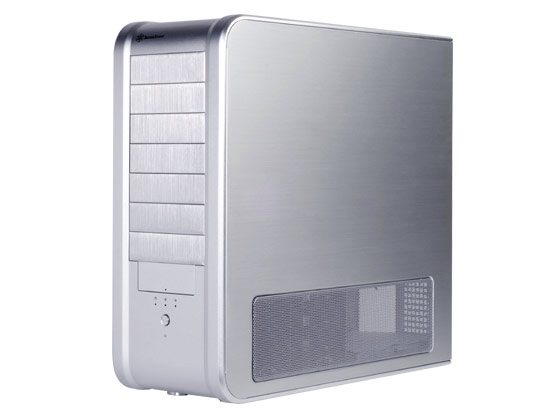

TJ07

(information from SilverStone )

Product Specifications:

Model No.	SST-TJ07B (black) SST-TJ07S (silver) SST-TJ07B-W (black, with window) SST-TJ07S-W (silver, with window)
Material	4.0mm ~ 8.0mm uni-body aluminum outer frame, 2.0mm aluminum body
Motherboard	SSI, Extended ATX, ATX, Micro ATX
Multimedia	--
Drive Bay	External	5.25" x 7 3.5" x 1 (occupied by front I/O)
	Internal	3.5" x 6
Cooling System	Front	--
	Rear	2 x 92mm intake fans, 2100rpm, 23dBA
	Side	2 x 120mm HDD intake fans, 1200rpm, 21dBA
	Top	2 x 120mm exhaust fan, 1200rpm, 21dBA
	Bottom	--
	Internal	--
Expansion Slot	7
Front I/O Port	USB2.0 x 4 IEEE1394 x 1 Audio x 1 MIC x 1
Power Supply	2 x Optional standard PS2 (ATX) or 1 x Redundant PS2
Operating system support	--
Expansion Card	--
Limitation of CPU cooler	--
Limitation of PSU	--
Net Weight	12.9 kg
Dimension	220 mm (W) x 560 mm (H) x 565 mm (D)
Extra	--
