Transform

The defined transform Animation in transform.py

• transform.Transform(Animation)
  • transform.ReplacementTransform(Transform)
  • transform.TransformFromCopy(Transform)
  • transform.ClockwiseTransform(Transform)
  • transform.CounterclockwiseTransform(Transform)
  • transform.MoveToTarget(Transform)
  • transform.CyclicReplace(Transform)
    • transform.Swap(CyclicReplace)
  • transform.ApplyMethod(Transform)
    • transform.ApplyPointwiseFunction(ApplyMethod)
      • transform.ApplyPointwiseFunctionToCenter(ApplyPointwiseFunction)
      • transform.ApplyMatrix(ApplyPointwiseFunction)
    • transform.FadeToColor(ApplyMethod)
    • transform.ScaleInPlace(ApplyMethod)
      • transform.ShrinkToCenter(ScaleInPlace)
    • transform.Restore(ApplyMethod)
    • transform.ApplyComplexFunction(ApplyMethod)
  • transform.ApplyFunction(Transform)
  • transform.TransformAnimations(Transform)

Class ClockwiseTransform(Transform)

ClockwiseTransform is used to transform the first specified VMobject at first one position animatedly into the second specified VMobject at second one position for given parameters along a curved path in clockwise direction.

Class CounterclockwiseTransform(Transform)

CounterclockwiseTransform is used to transform the first specified VMobject at first one position animatedly into the second specified VMobject at second one position for given parameters along a curved path in counterclockwise direction.

Example

Code

# folder/file: tut/manim_animation_clockwisecounterclockwisetransform_001a.py

from manimlib.scene.scene import Scene
from manimlib.mobject.geometry import Circle, Square
from manimlib.animation.transform import ClockwiseTransform, CounterclockwiseTransform
from manimlib.mobject.svg.tex_mobject import TextMobject
from manimlib.animation.composition import AnimationGroup

class manim_animation_clockwisecounterclockwisetransform_001a(Scene):
   def construct(self):
        a1=TextMobject("Test1 Text").move_to([-5.5,2.5,0])
        a2=TextMobject("T2 Text").move_to([-3,2.5,0])
        a3=Circle().scale(0.5).move_to([-0.5,2.5,0])
        a4=Square().scale(0.5).move_to([2,2.5,0])
        b1=TextMobject("Test1 Text").move_to([-5.5,0,0])
        b2=TextMobject("T2 Text").move_to([-3,0,0])
        b3=Circle().scale(0.5).move_to([-0.5,0,0])
        b4=Square().scale(0.5).move_to([2,0,0])
        self.add(TextMobject("ClockwiseTransform").move_to([0,3.5,0]),TextMobject("CounterclockwiseTransform").move_to([0,1,0]))
        self.add(a1,a2,a3,a4,b1,b2,b3,b4)
        self.wait(3)
        self.play(AnimationGroup(ClockwiseTransform(a1,a2),CounterclockwiseTransform(b1,b2)),run_time=5)
        self.wait(3)
        a1.move_to([-5.5,3,0])
        b1.move_to([-5.5,0.5,0])
        self.wait(2)
        a2.move_to([-3,1.5,0])
        b2.move_to([-3,-1,0])
        self.wait(3)
        self.play(AnimationGroup(ClockwiseTransform(a1,a3),CounterclockwiseTransform(b1,b3),run_time=5))
        self.wait(3)
        self.play(AnimationGroup(ClockwiseTransform(a2,a4),CounterclockwiseTransform(b2,b4)),run_time=5)
        self.wait(3)

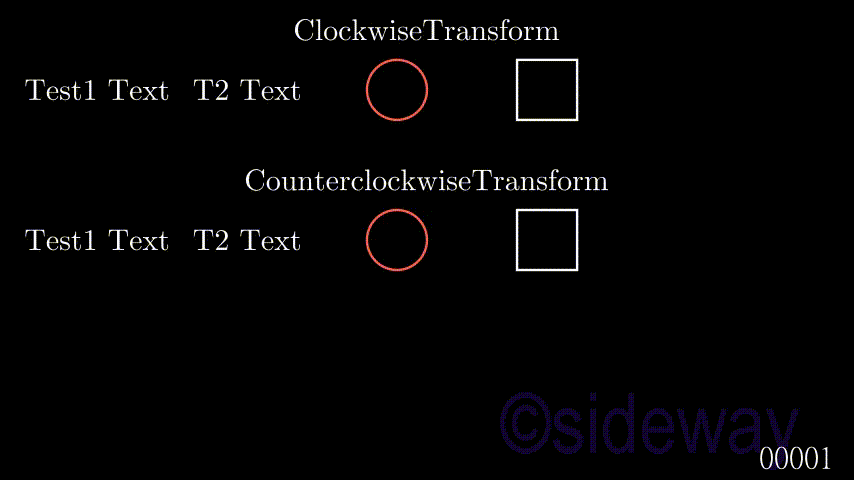

Output
