Draft for Information Only

Content


    ProLiant Microserver N54L

 HP Website
 Links of N54L

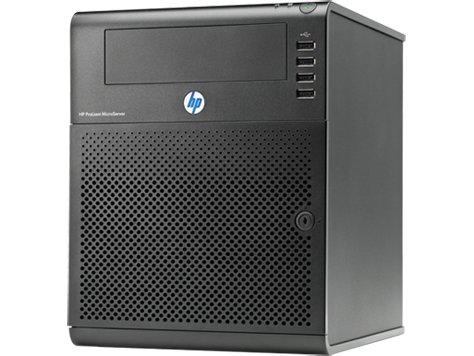

ProLiant Microserver N54L

(information from Hewlett-Packard)

Product Specifications: last updated 30Sep2016

Model	HP ProLiant Microserver N54L
Processor
Number of processors	1
Processor core available	2
Processor	AMD Turion™ II Neo N54L (2 core, 2.20 GHz, 1MB L2, 15W)
Processor speed	1.30 GHz
Processor cache	1 MB L2
Chipset	AMD RS785E/SB820M chipset
Memory
Memory slots	2 DIMM slots
Memory type	PC3-10600E UDIMMs DDR3 (operating at max. 800MHz)
Memory, maximum	8 GB
Memory, standard	2 (1x2G) GB
Memory protection features	Unbuffered ECC
Storage Controller
AMD Embedded	Embedded AMD SATA controller with RAID 0, 1 (Integrated 4 port SATA RAID)
AMD Embedded	Embedded AMD eSATA controller
Storage Drive Support
Hard drives	4 Internal HDD Support
Supported Hard drives	Non-hot plug LFF (3.5-inch) SATA
Standard SATA drives	Internal SATA storage capacity of up to 8.0TB (4 x 2TB 3.5" SATA drives)
Optical drive	1 Internal Optical drive Support
Supported Optical drives	Half-Height SATA DVD or DVD-RW drive
Network Controller
Embedded Network controller	1 NC107i PCI Express Gigabit Ethernet Server Adapter 1GbE NC107i 1 Port (?BCM5723 chip?)
Expansion slots
Expansion slots 1	half-height, half-length PCI-Express Gen 2 x16 connector with x16 link
Expansion slots 2	half-height, half-length PCI-Express Gen 2 x1 connector with x1 Link
Expansion slots 2-2	PCI-Express x4 slot for optional management card
Interfaces
on board Video Ouput	VGA 128MB shared supporting 1920x1200 @ 60Hz
Seven (7) USB 2.0 ports	4 front , 2 rear, 1 internal (for tape)
Network RJ-45 (Ethernet)	1 rear of 10/100/1000 bits/s
eSATA Gen 2	1 rear
Power Supplyr
Power supply type	200 Watts Non-Hot Plug, Non Redundant Power Supply
Management
MicroServer Remote Access	Optional MicroServer Remote Access Card
Operating System
Supported OS	Windows and Red Hat Linux
System
Form factor chassis	Ultra Micro Tower
Physical information
Weight	17 lb
Dimensions (W x D x H)	12.4 x 14.75 x 15.74 in

HP Website

612275-001 https://h10057.www1.hp.com/ecomcat/hpcatalog/specs/provisioner/99/612275-001_link.htm~~last updated 10 Sep 2016~~
Base Hardware n36l - HP MicroServer N40L Wiki - Wikia http://n40l.wikia.com/wiki/Base_Hardware_n36l~~last updated 10 Sep 2016~~
Bios - HP MicroServer N40L Wiki - Wikia http://n40l.wikia.com/wiki/Bios~~last updated 10 Sep 2016~~
CONCEPT DESIGN - HP microserver 11 Drive edition http://lime-technology.com/forum/index.php?topic=16535.0~~last updated 11 Sep 2016~~
Drivers & Software for HP NC107i Integrated PCI Express Gigabit Server Adapter - HPE Support Center. http://h20564.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=3811481&swLangOid=8&swEnvOid=4024~~last updated 10 Sep 2016~~
How to Install Modified BIOS for Microserver N40L Step by step guide - Nathaniel Perez http://www.nathanielperez.us/blog/hp-proliant-n40l-bios-modification-guide~~last updated 10 Sep 2016~~
HP MicroServer N40L Wiki - Wikia http://n40l.wikia.com/wiki/HP_MicroServer_N40L_Wiki~~last updated 10 Sep 2016~~
Hp Microserver N40L Windows 8.1 Installation Problems - Windows 8/8.1/10 (Home Server) - We Got Served Forums http://forum.wegotserved.com/index.php?/topic/29031-hp-microserver-n40l-windows-81-installation-problems/~~last updated 10 Sep 2016~~
HP N36L/N40L/N54L Microserver Updated AHCI BIOS Support. | AVForums https://www.avforums.com/threads/hp-n36l-n40l-n54l-microserver-updated-ahci-bios-support.1521657/~~last updated 11 Sep 2016~~
HP Proliant MicroServer | silentpcreview.com http://www.silentpcreview.com/article1193-page7.html~~last updated 11 Sep 2016~~
HP ProLiant MicroServer N36L Owner?嚙編 Thread | AVForums https://www.avforums.com/threads/hp-proliant-microserver-n36l-owners-thread.1431514/~~last updated 10 Sep 2016~~
HP ProLiant N40L MicroServer Build and BIOS Modification Revisited – Home Server Show http://homeservershow.com/hp-proliant-n40l-microserver-build-and-bios-modification-revisited.html~~last updated 10 Sep 2016~~
HP ProLiant N54L G7 MicroServer — First Look – Home Server Show http://homeservershow.com/hp-proliant-n54l-g7-microserver-first-look.html~~last updated 10 Sep 2016~~
HP® Official Site | Laptop Computers, Desktops, Printers and more http://www.hp.com/~~last updated 16 Jul 2017~~
Introducing my HP Microserver N36L / N40L / N54L using WHS2011 + XBMC http://forum.kodi.tv/showthread.php?tid=104372~~last updated 11 Sep 2016~~
Tekforums - HP Proliant Microserver - Purchase, Upgrade & Setup Guide http://www.tekforums.net/guides-projects/hp-proliant-microserver-purchase-upgrade-setup-guide/?PHPSESSID=b9c353571fc68b9a5d77a90e3c2660c8~~last updated 11 Sep 2016~~
Tekforums - unRAID Server Setup & Management Guide (using an HP MicroServer) http://www.tekforums.net/guides-projects/unraid-server-setup-management-guide-(using-an-hp-microserver)/?PHPSESSID=b9c353571fc68b9a5d77a90e3c2660c8~~last updated 11 Sep 2016~~
unable to access bios update for HP Microserver G7 N54L - HP Support Forum - 4765158 http://h30434.www3.hp.com/t5/Desktop-Hardware-and-Upgrade-Questions/unable-to-access-bios-update-for-HP-Microserver-G7-N54L/td-p/4765158~~last updated 10 Sep 2016~~
Whs On Hp Proliant Microserver - Installation - We Got Served Forums http://forum.wegotserved.com/index.php?/topic/16427-whs-on-hp-proliant-microserver/~~last updated 10 Sep 2016~~

Links of N54L

HP ProLiant MicroServer G7 N54L 1P 4GB-U 150W PS Server (708245-425) | HPR Africa http://www8.hp.com/emea_africa/en/products/oas/product-detail.html?oid=5336627~~last updated 30 Sep 2016~~
