Centroid of 3D Body

The centroid of 3D Body is determined by the first moment of a three dimensional body with the method of the first moment of volume.

Centroids of Volumes

Volume by Integration

Although triple integration is usually required to determine the volume of 3D body. However volume of 3D body can also be determined by performing a double integration or a single integration.

Volume by Double Integration

 If the inner integration of the unit elemental volume can be expressed as a strip of elemental volume in one dimension.

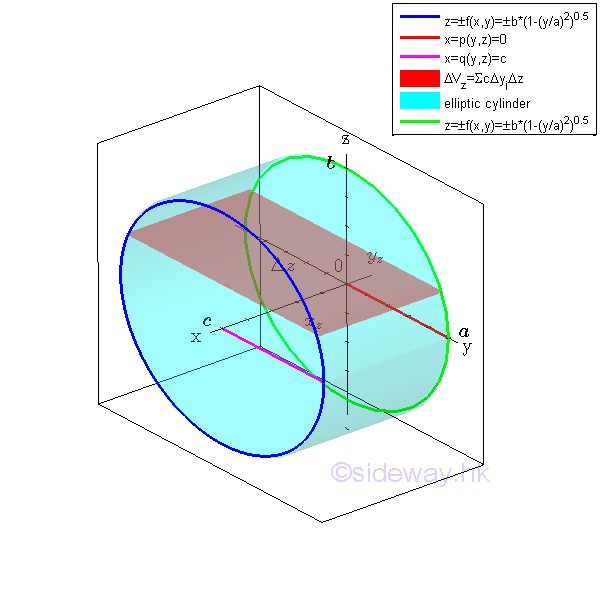

For example, the signed volume of the 3D ellipic cylinder is bounded by surfaces in rectangular form , Imply

An elemental volume ΔV in rectangular form can be defined as Δx times Δy times Δz. Imply

An unit elemental volume can be expressed as

Therefore the unit elemental volume can be expressed as a strip of elemental volume of the solid cylinder U in the planar region R of cartesian coordinates yz. Imply

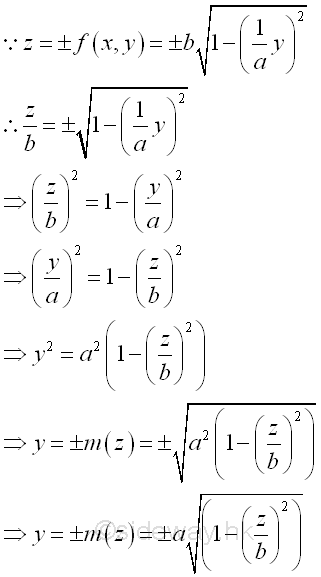

All unit elemental volumes can be bounded by curves in the plane yz. And the curves is

In general, the volume of a region can be determined by double integration through sweeping the signed elemental volume starting from along either rectangular coordinate axes.  Imply

Starting from horizontal sweeping along y axis

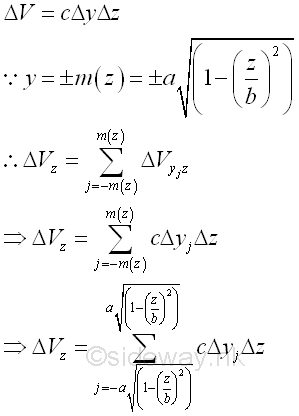

Consider an unit elemental volume ΔVyz along y axis horizontally. Imply

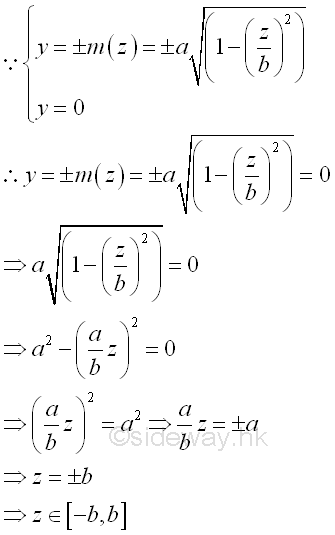

Since the bounding curves are joined at plane zx, The bounds of the bounding curves are

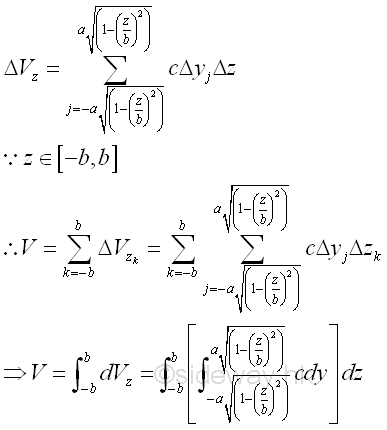

Therefore the volume of the solid cone U can be determined by

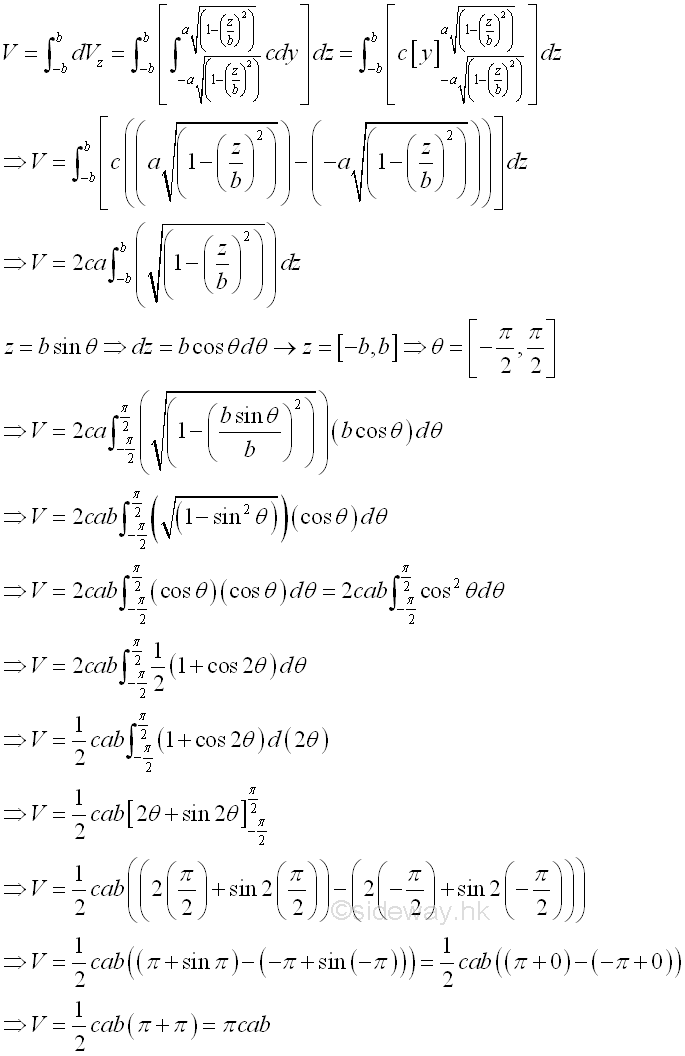

Therefore the volume of the solid cone U is

Volume by Single Integration

 If the inner integration of the unit elemental volume can be expressed as a sheet of elemental volume in two dimensions.

For example, the signed volume of the 3D ellipic cylinder is bounded by surfaces in rectangular form , Imply

An elemental volume ΔV in rectangular form can be defined as Δx times Δy times Δz. Imply

An unit elemental volume can be expressed as

Therefore the unit elemental volume can also be expressed as a sheet of elemental volume of the solid cylinder U along the cartesian coordinate axis x. Imply

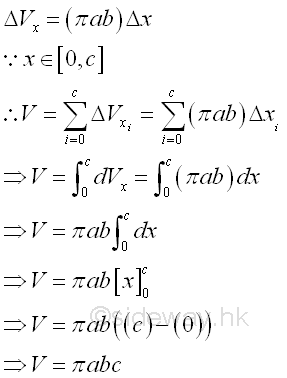

Sweeping the unit elemental volume ΔVx  along x axis horizontally

Since all unit elemental volumes of ΔVx are bounded along x axis, imply

Therefore the volume of the solid cone U is
