Forces

The effect of force on an object can be characterized by its point of application, magnitude, and direction. As force has both magnitude and direction, it is a vector quantity. The unit of force is Newton.

Force Vectors

A force vector can be represented by an arrow with the length of arrow represents the magnitude of the force, the angle between the arrow and the coordinate axis defines the direction of force indicated by the line of action, and the arrow head indicates the sense of direction.

Forces in a Plane

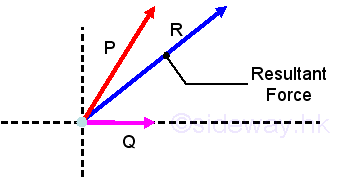

When more than one force act on a point, they can be replaced by a single resultant force with teh same effect on the point of action.

The resultant force can be determined by means of vector addition.

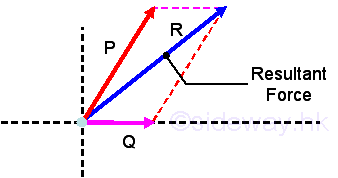

• Parallelogram Law: The applied forces can be represented by the adjacent sides of the parallelogram and the resultant force can be obtained by drawing the diagonal of the parallelogram.

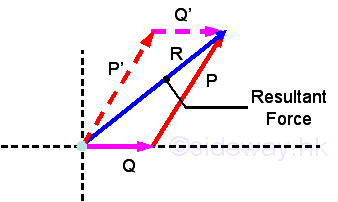

• Triangle Rule: The applied force can be represented by two sides of a triangle in sequence and the resultant force can be obtained by drawing the third closing side of the triangle.in the opposite sense. Similarly, the triangle rule can further extend to the polygon rule, by using polygon construction method to represent the resultant force in both magnitude and direction.



• Laws of Trigonometric Functions : This is an analytical method based on the geometry instead of using vector construction method with true scale of magnitude and direction.



  The magnitude of the resultant froce can be determined by pythagorean theorem or the law of cosines.



  The direction of the resultant froce can be determined by the law of sines.



  or be determined by the triangle rules.



Force decomposition

From the parallelogram Law, force can be resolved into two components. When the two components are perpendicular to each other in the form of a rectangle, they are called rectangular components.

or

Assumed two unit vectors, i and j, with unit magnitude along the x and y axis. Then

, , and , imply

The two components of the force vector can be obtained by

and

The magnitude of the force vector can also be obtained by



And the direction of the force vector can also be obtained by

Force Equilibrium

According to Newton's first law of motion, when a particle is in equilibrium, the resultant of all the forces acting on it is zero. That is

And graphically in the form of force polygon,

, imply

When there are only three applied forces, the problem can be reduced to a force triangle and be solved by trigonometry.

Analytically, forces can be resolved into rectangular components to form the equations of equilibrium. Imply

Therefore,

  and
